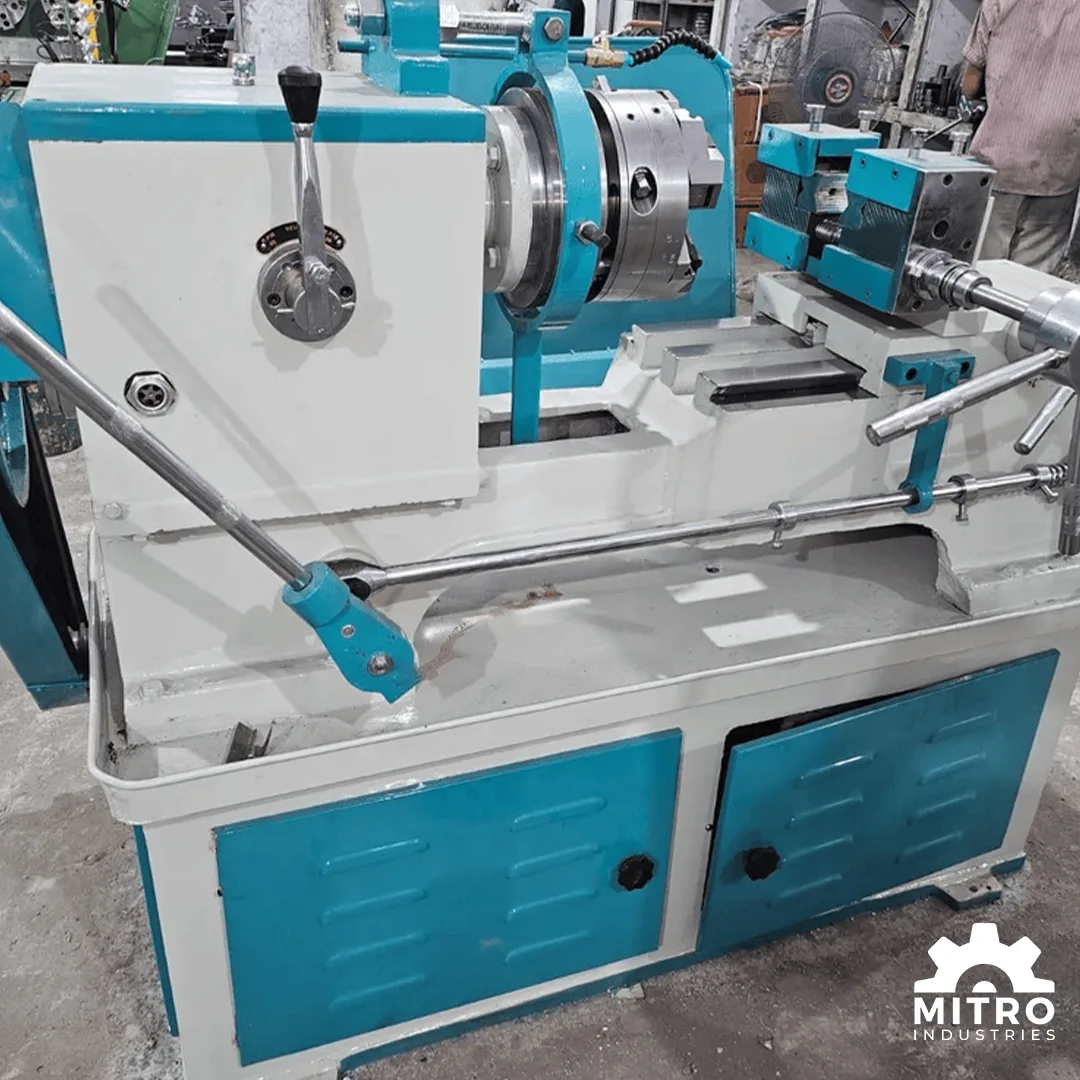

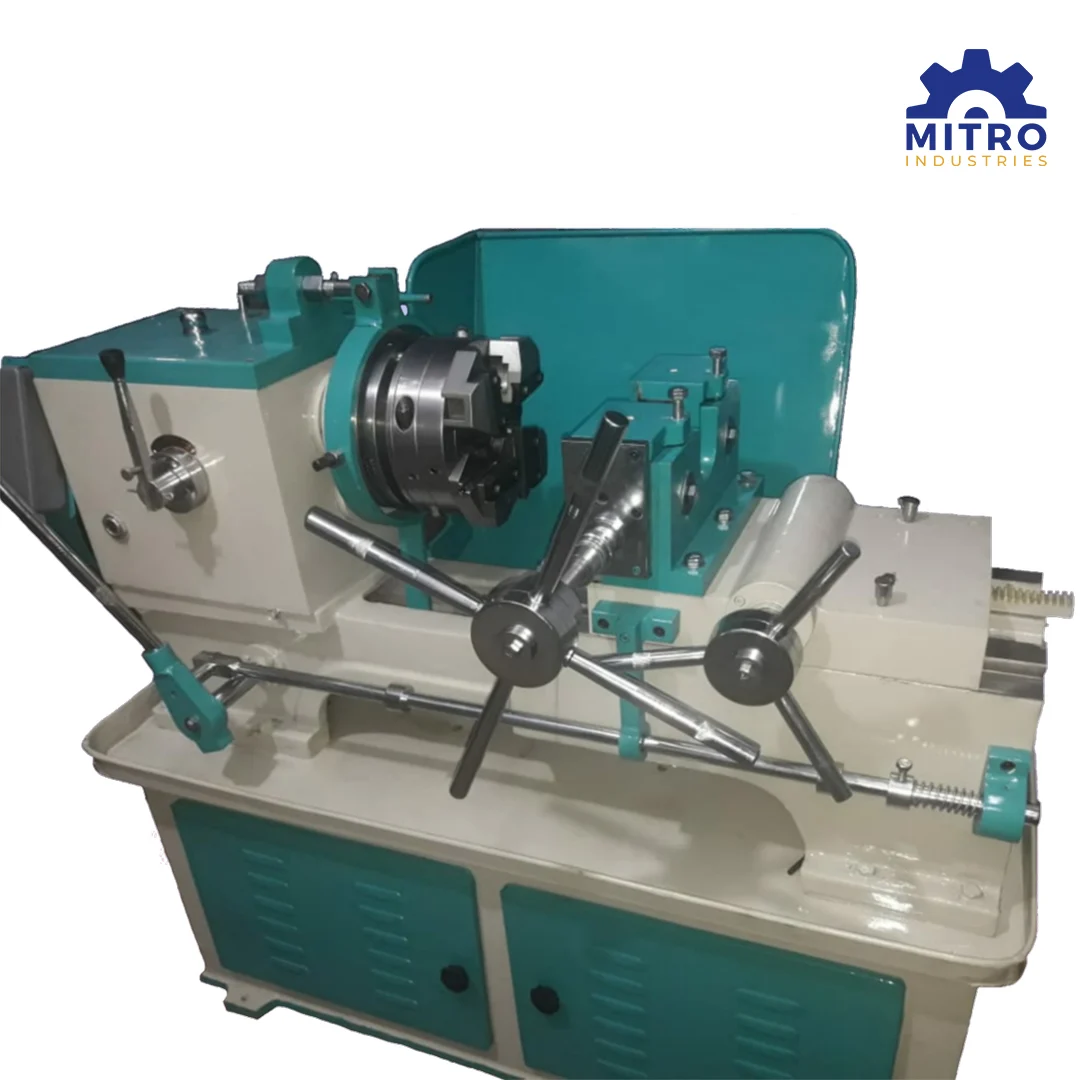

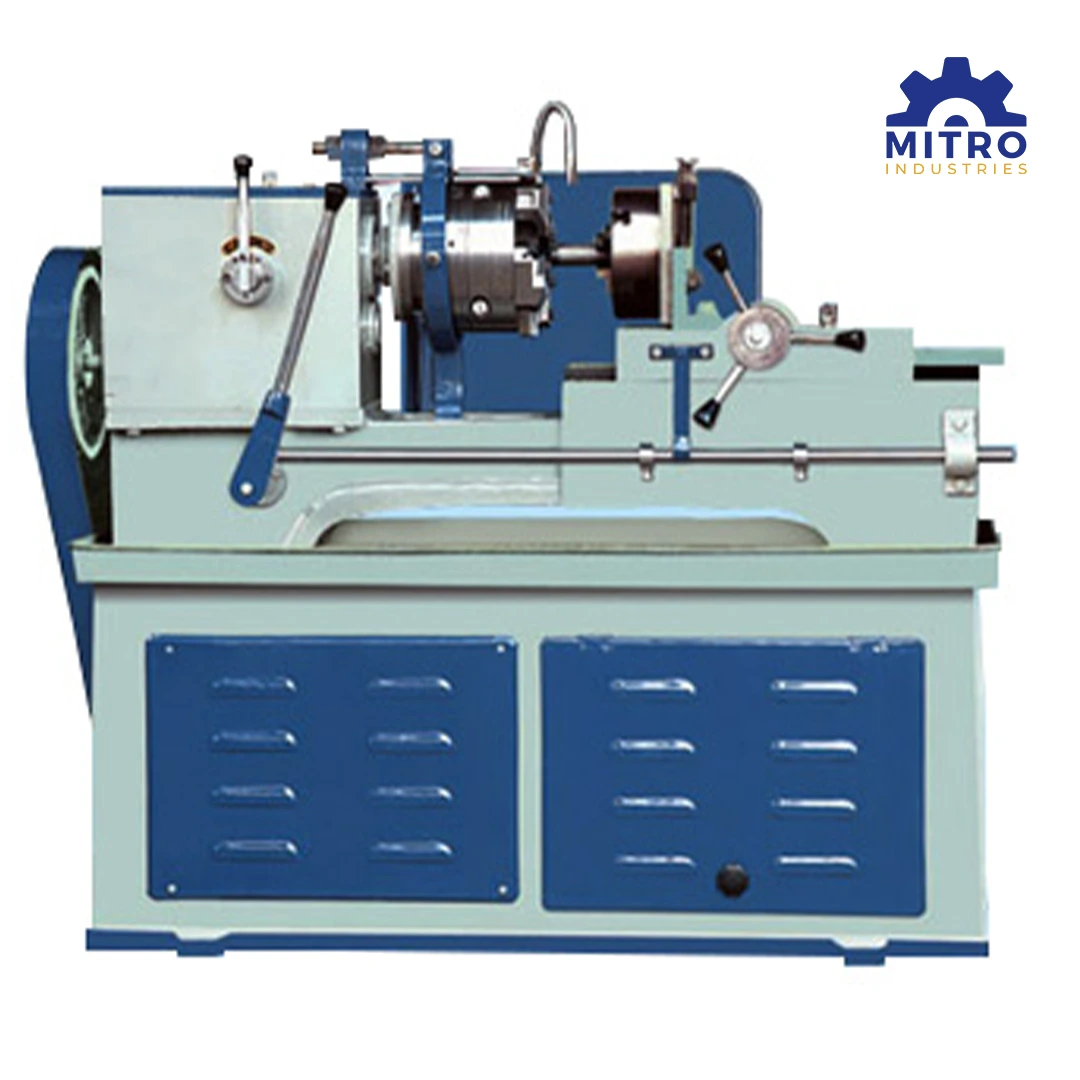

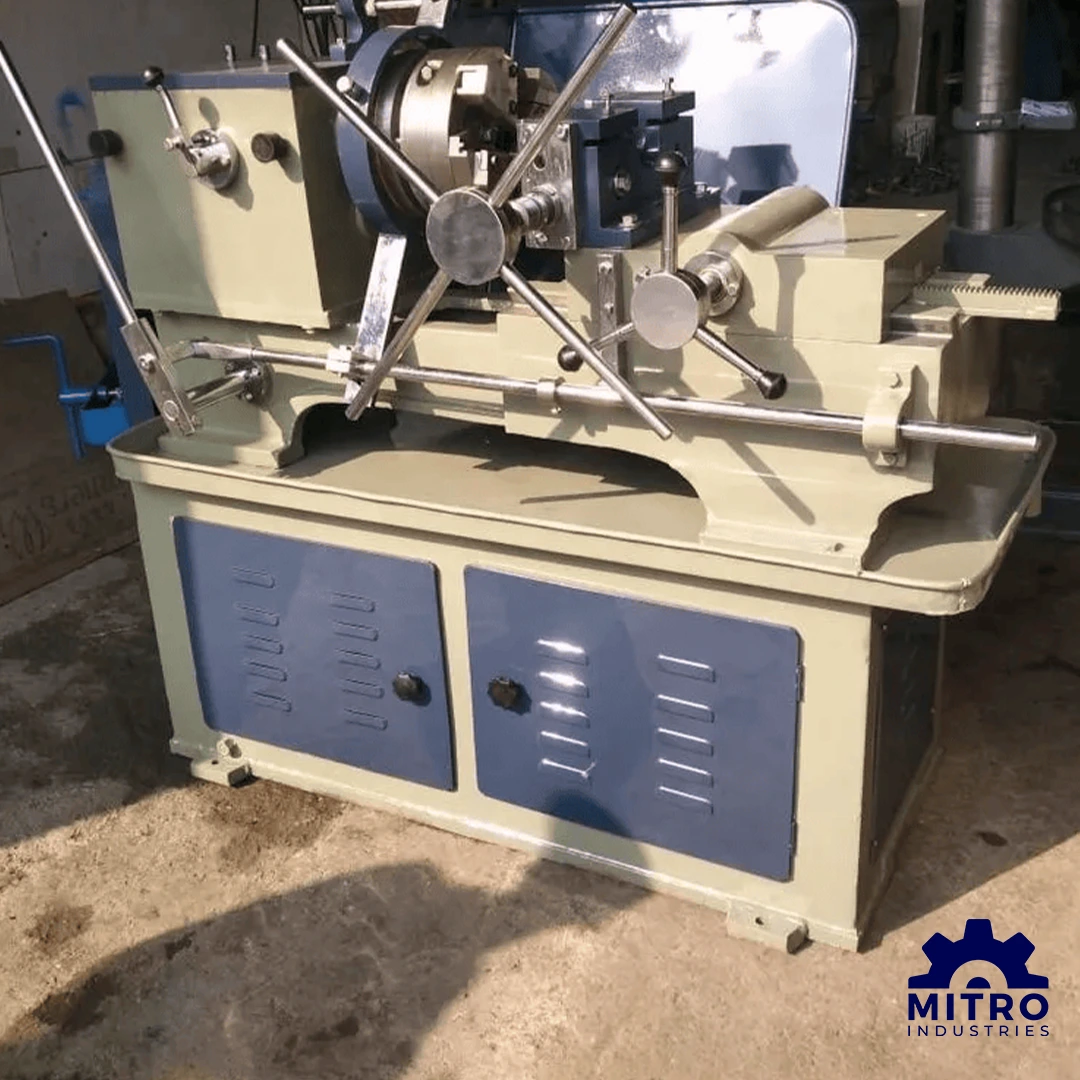

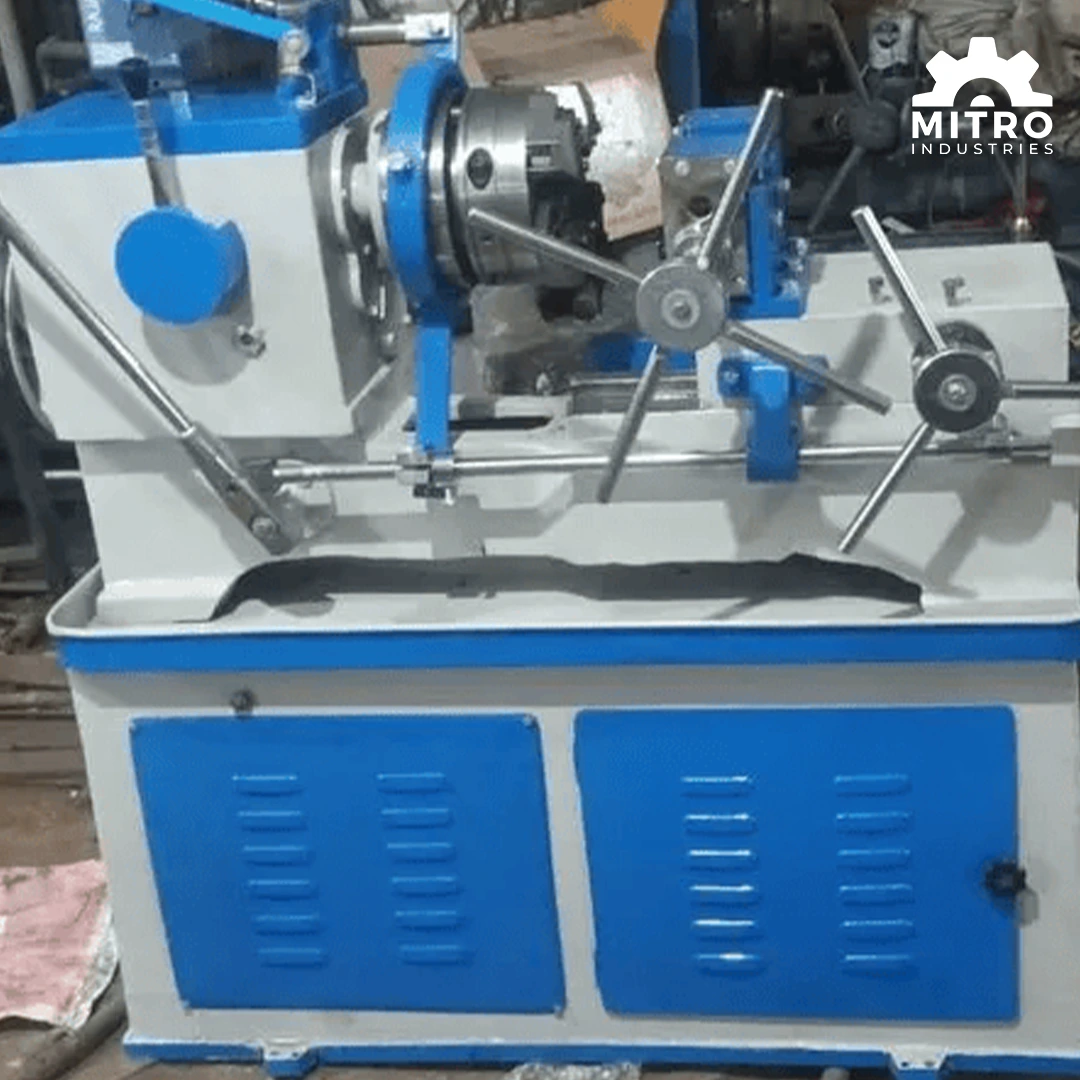

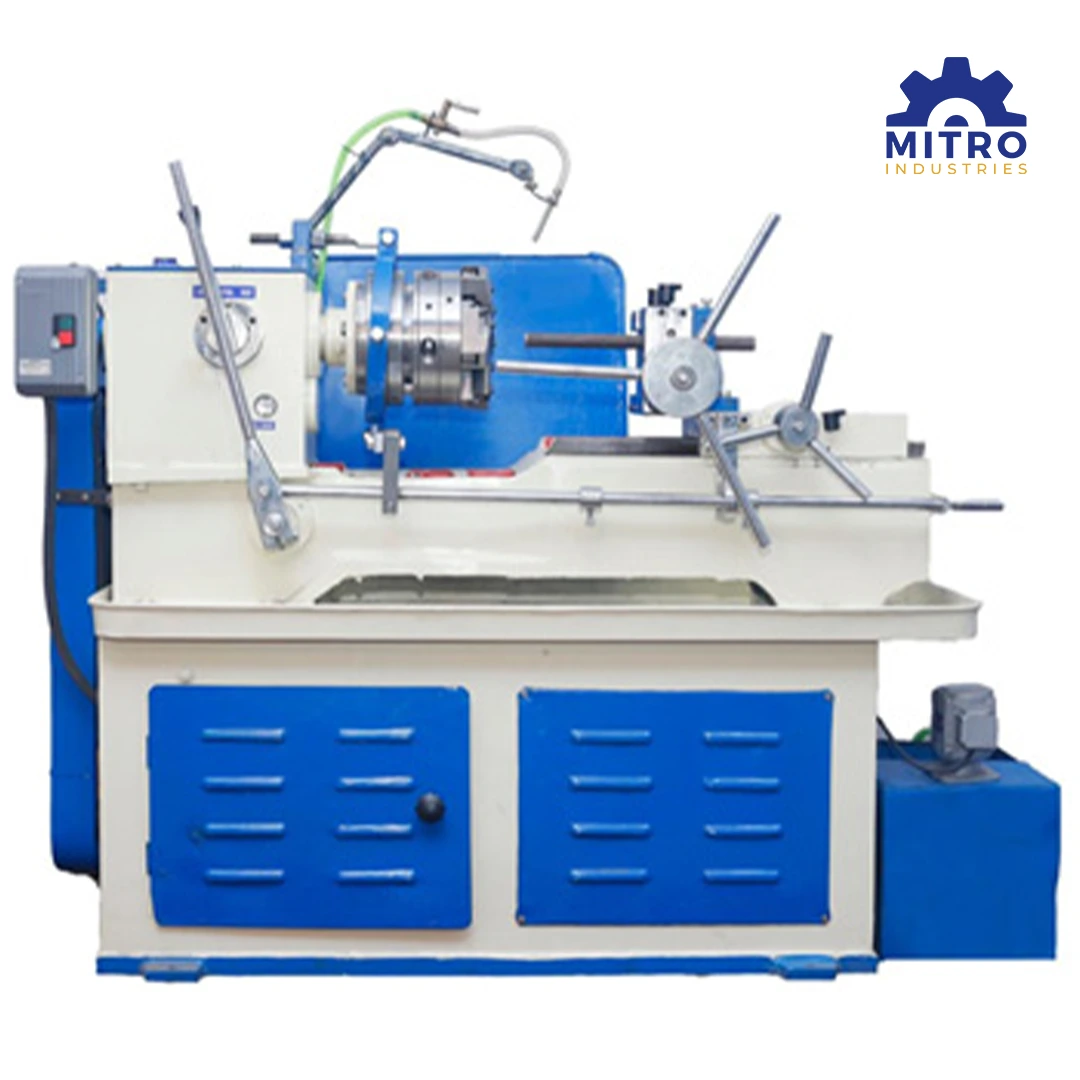

Rebar Chaser Threading Machine
Heavy-duty Rebar Chaser Threading Machine for TMT & round bars using tangential chasers. Precision threading, durable build & low maintenance. View Complete Details...
Product Specification
Our Rebar Chaser Threading Machine is a robust and precision-engineered solution for threading both round bars and TMT rebars, using a tangential chaser system. Built for durability and high-performance, this machine is ideal for mechanical splicing applications in construction and infrastructure projects.
Unlike conventional threading machines, this model employs tangential chasers for superior cutting accuracy, allowing efficient threading even on high-strength TMT bars without compromising the bar's structural integrity.
Key Features

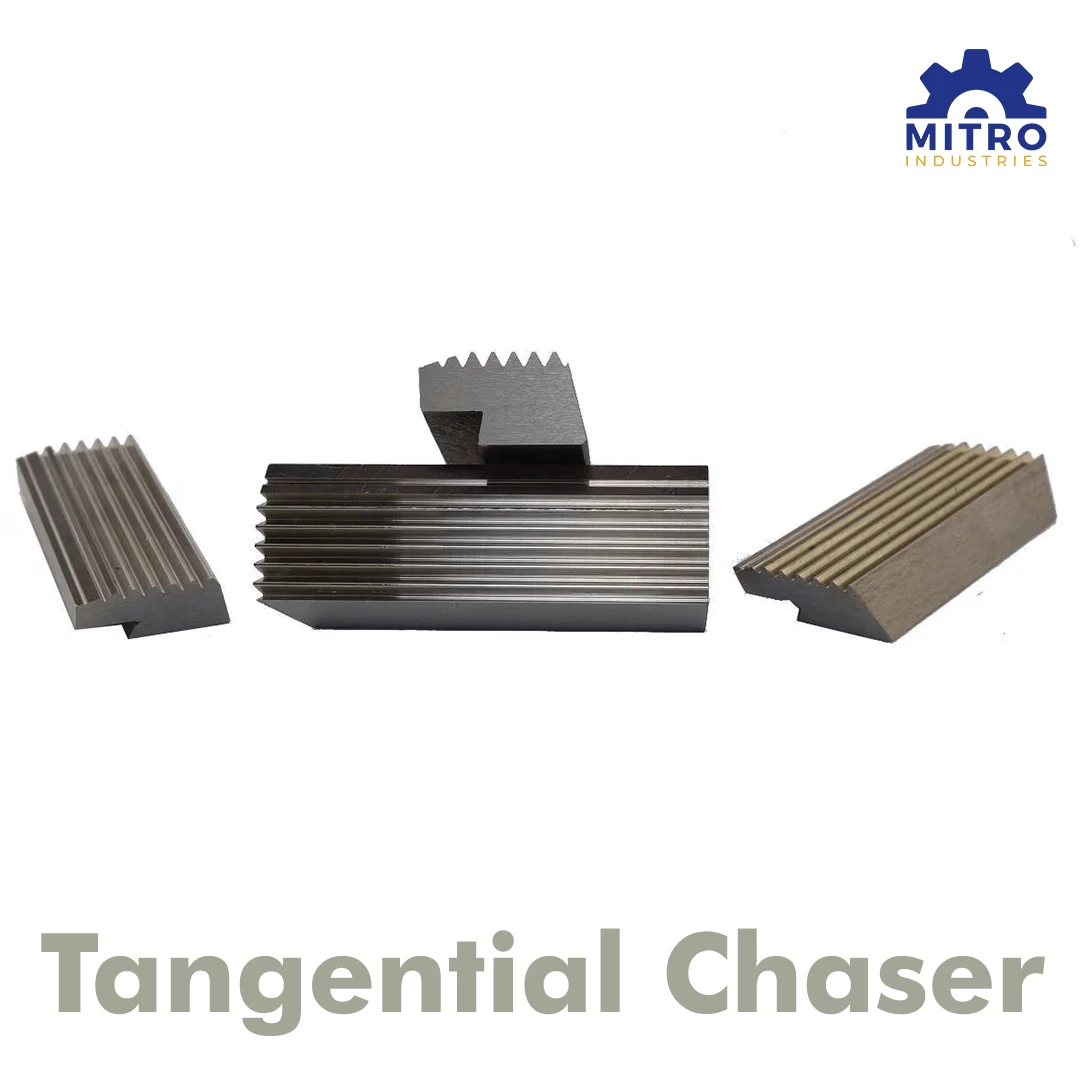

Tangential Chaser Technology
Equipped with high-quality tangential chasers for accurate, clean, and uniform thread cutting.
Dual Compatibility
Capable of threading both round bars and TMT rebars (ribbed or plain surface).
Heavy-Duty Performance
Ideal for on-site and factory use with consistent output across multiple rebar diameters.
Adjustable Thread Length
Easily configurable to suit various project requirements and standards.
Cost-Effective Operation
Minimal wear and tear on tools; long chaser life ensures reduced maintenance costs.
Technical Specifications
Parameter | Details |
| Threading System | Tangential Chaser (Four-Die System) |
| Suitable Bar Types | Round Bars & TMT Bars |
| Rebar Diameter Range | 8mm to 65mm |
| Thread Standard | ISO Metric / BS / Custom |
| Motor Power | 3 HP to 7.5 HP |
| Thread Length | Adjustable (up to 400mm) |
| Chaser Material | D2 & M2 |
| Operation Mode | Semi-Automatic / Manual Feed |
Specification
| Length of Bed | 53'' |
| Width of Bed | 12'' |
| Height of Bed | 13'' |
| Length of Pedestal Box | 52'' |
| Width of Pedestal Box | 18'' |
| Height of Pedestal Box | 21'' |
| Length of Slide | 18'' |
| Width of Slide | 12'' |
| Height of Slide | 3'' |
| Length of Head | 15'' |
| Width of Head | 12'' |
| Height of Head | 12'' |
| Threading Length | 32mm - 400mm | 40mm - 300mm | 65mm - 350mm |
| Motor | 3Hp, 5Hp & 7.5Hp (1440 RPM) |
| Power Supply | 415 Volt & 3 Phase Connection |
| Frequency | 50/60 Hz |
| Hardness of Sheet | 60 HRC |
Types of Model
• 8mm - 25mm
• 12mm - 40mm
• 12mm - 65mm
Range of Die Heads Available
Our machines support a wide threading range, with die heads suited for different diameters
Diameter Range | Die Head Size |
| 1/4 inch to 1 inch | Standard |
| 3/8 inch to 1.1/2 inch | Medium |
| 1/2 inch to 2.1/2 inch | Heavy Duty |
| 1 inch to 4 inch | Extra Heavy |
Applications
• Civil construction & infrastructure projects
• Column & beam mechanical splicing
• Pile foundations & precast connections
• Bridge and tunnel reinforcement work
• Rebar coupler installations
Why Choose Our Machine?
• Precision Threading : Clean threads that ensure high-strength coupler connections
• Versatile Use : One machine for both round and ribbed bars
• Built to Last : Industrial-grade components for extended use in tough conditions
• Low Maintenance : Durable design with easy-to-replace chasers
