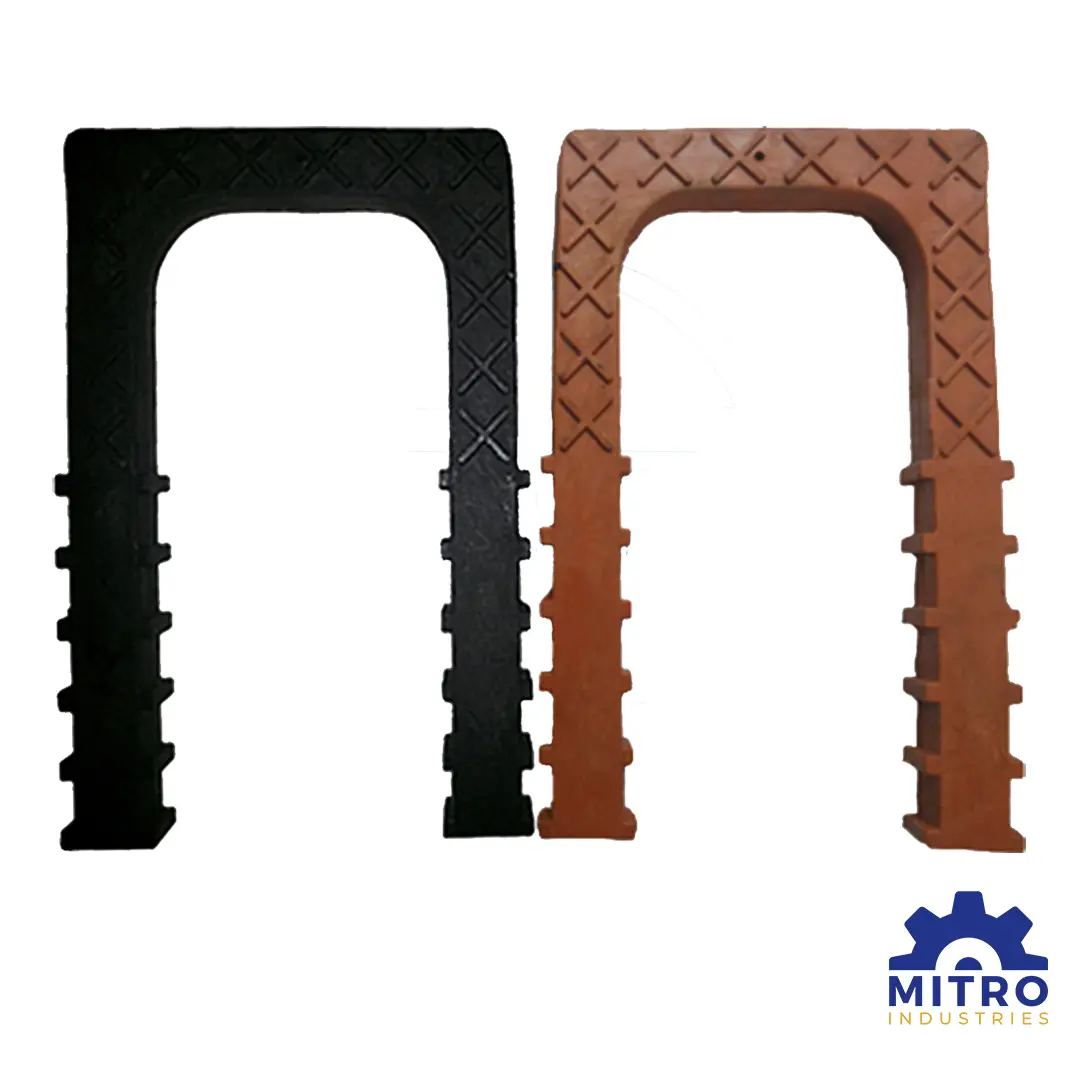

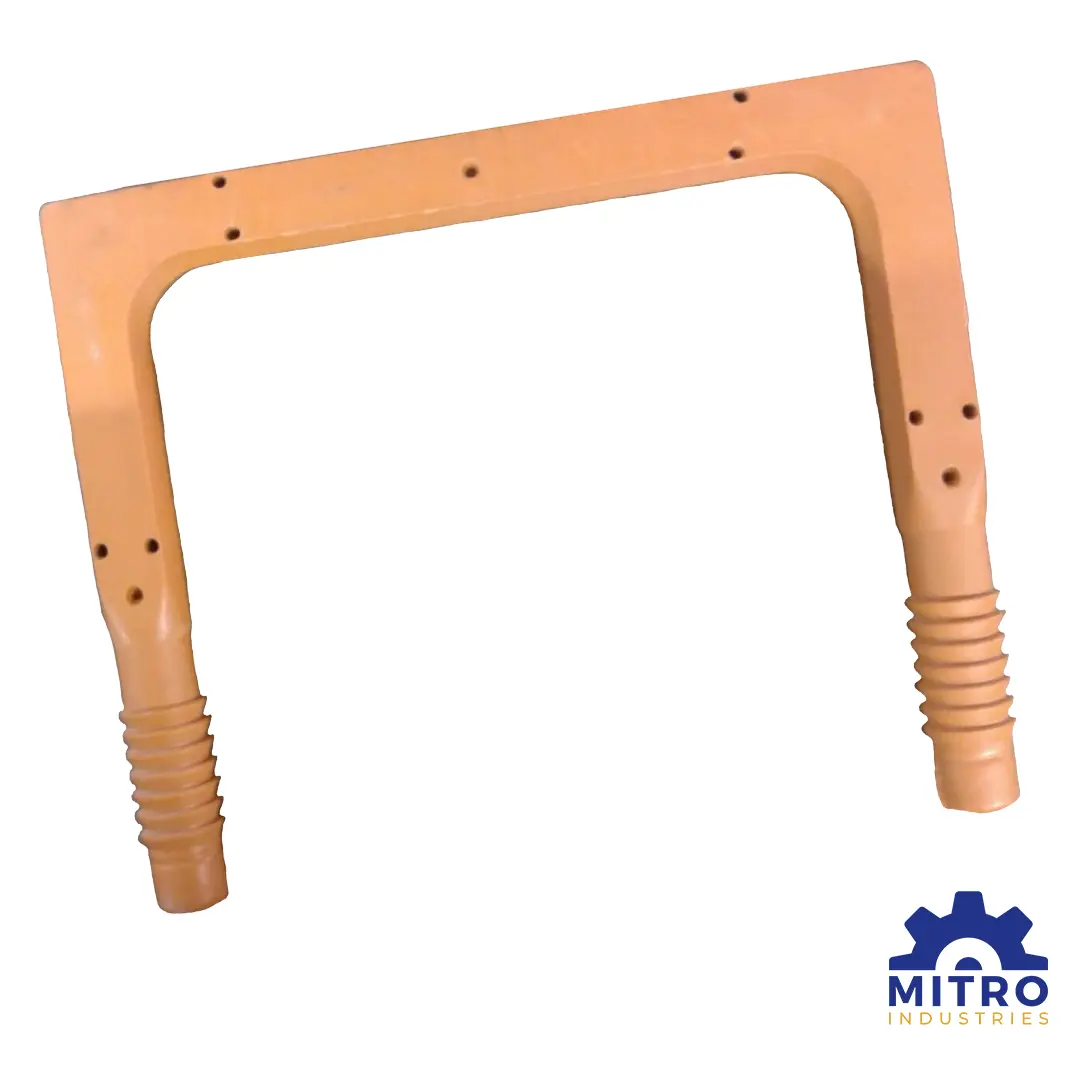

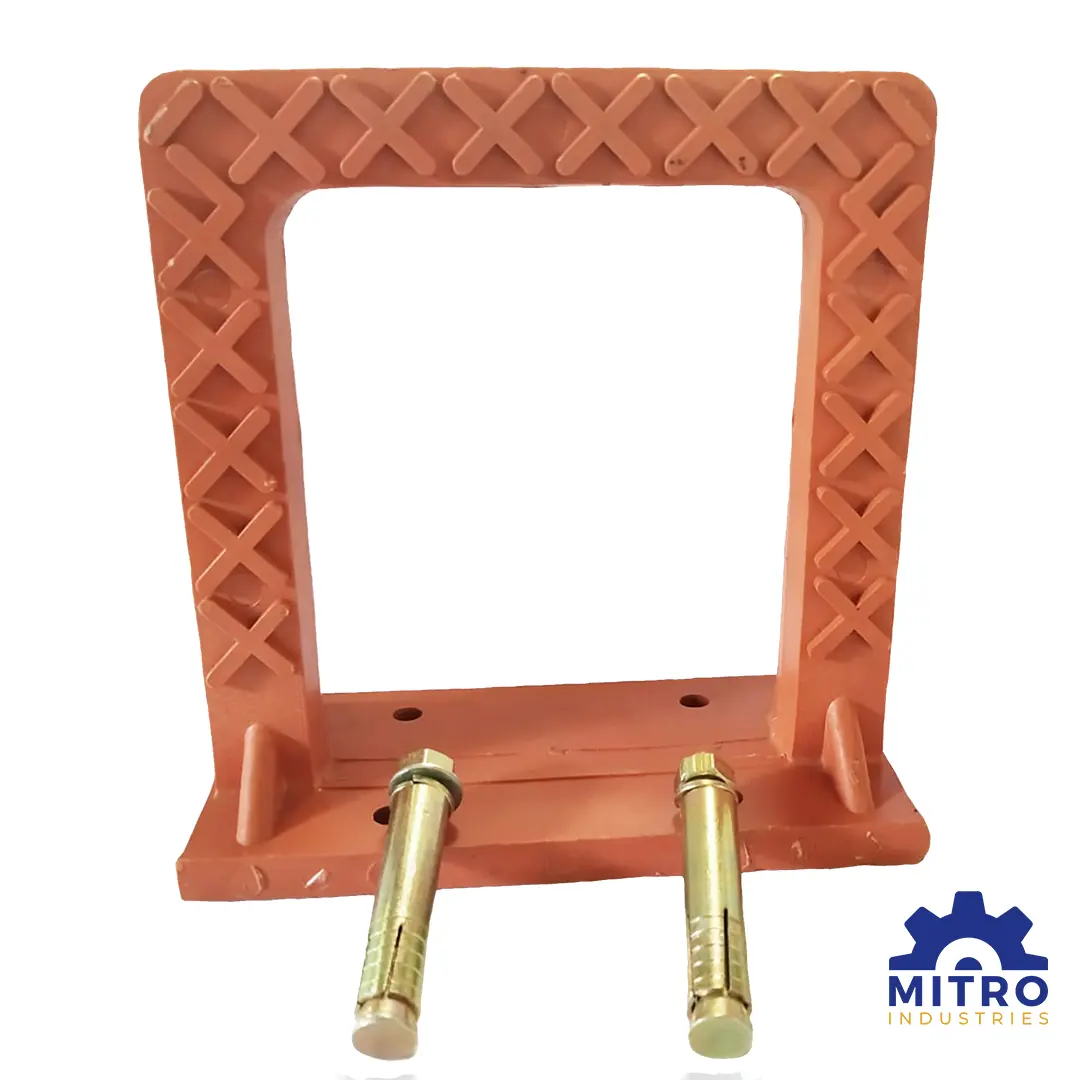

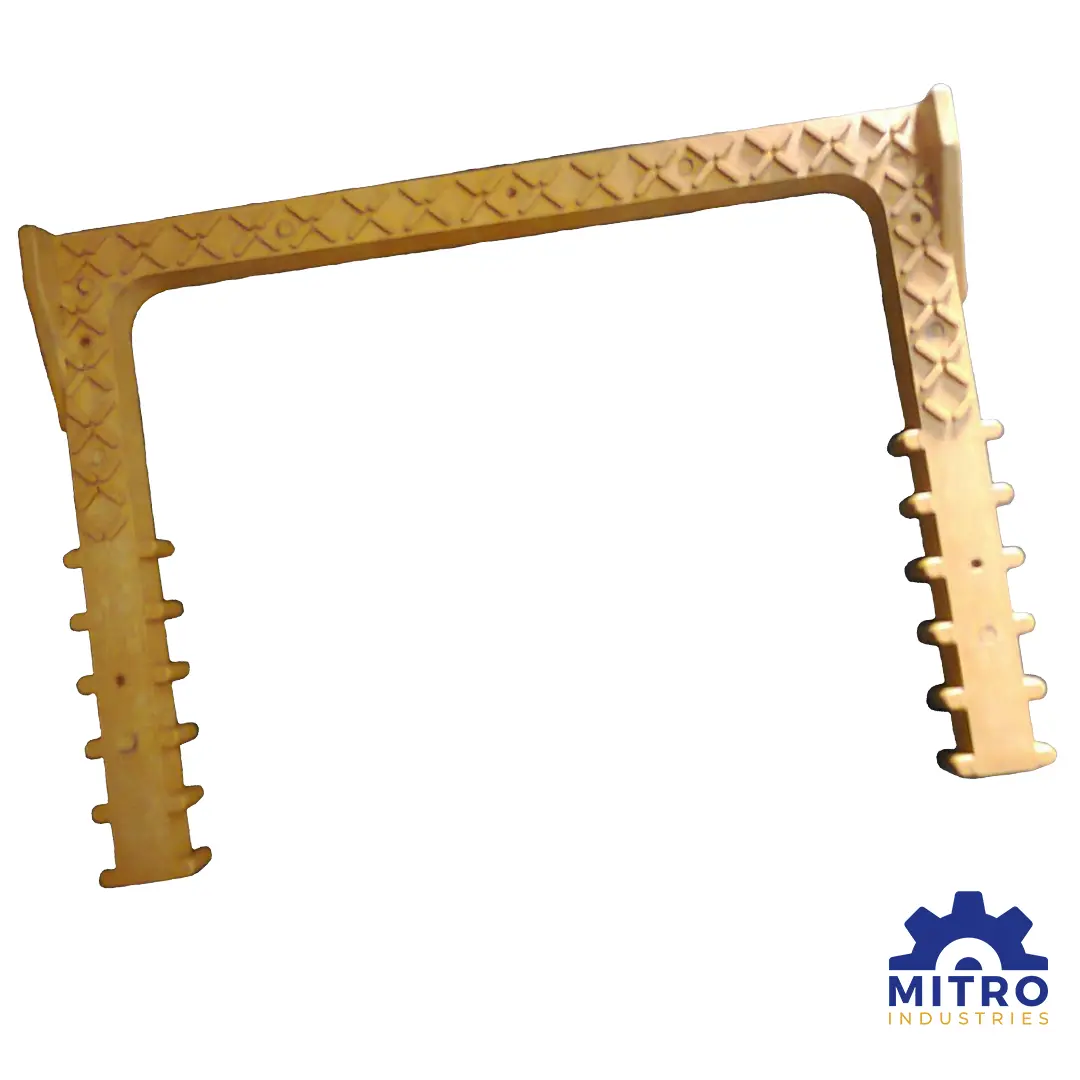

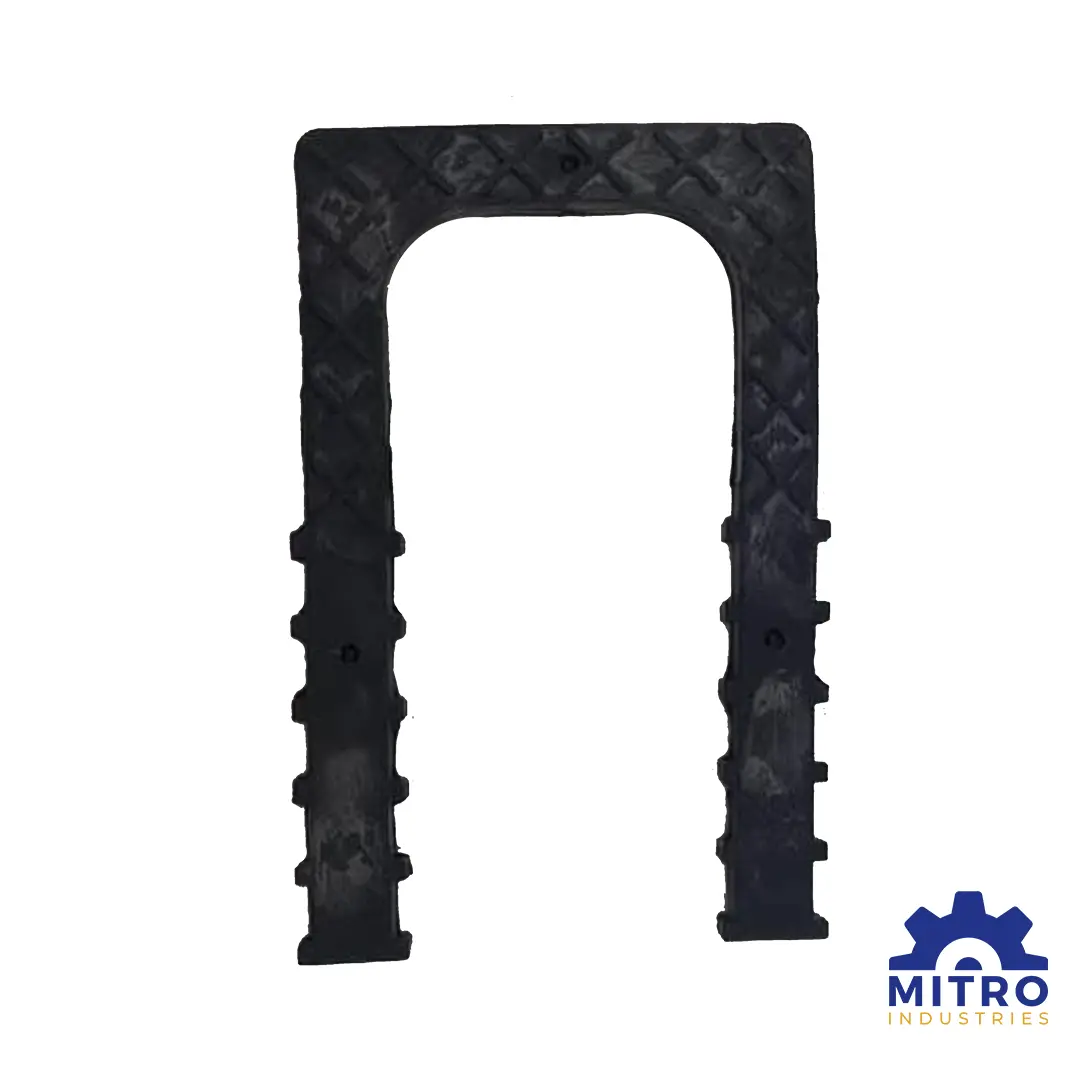

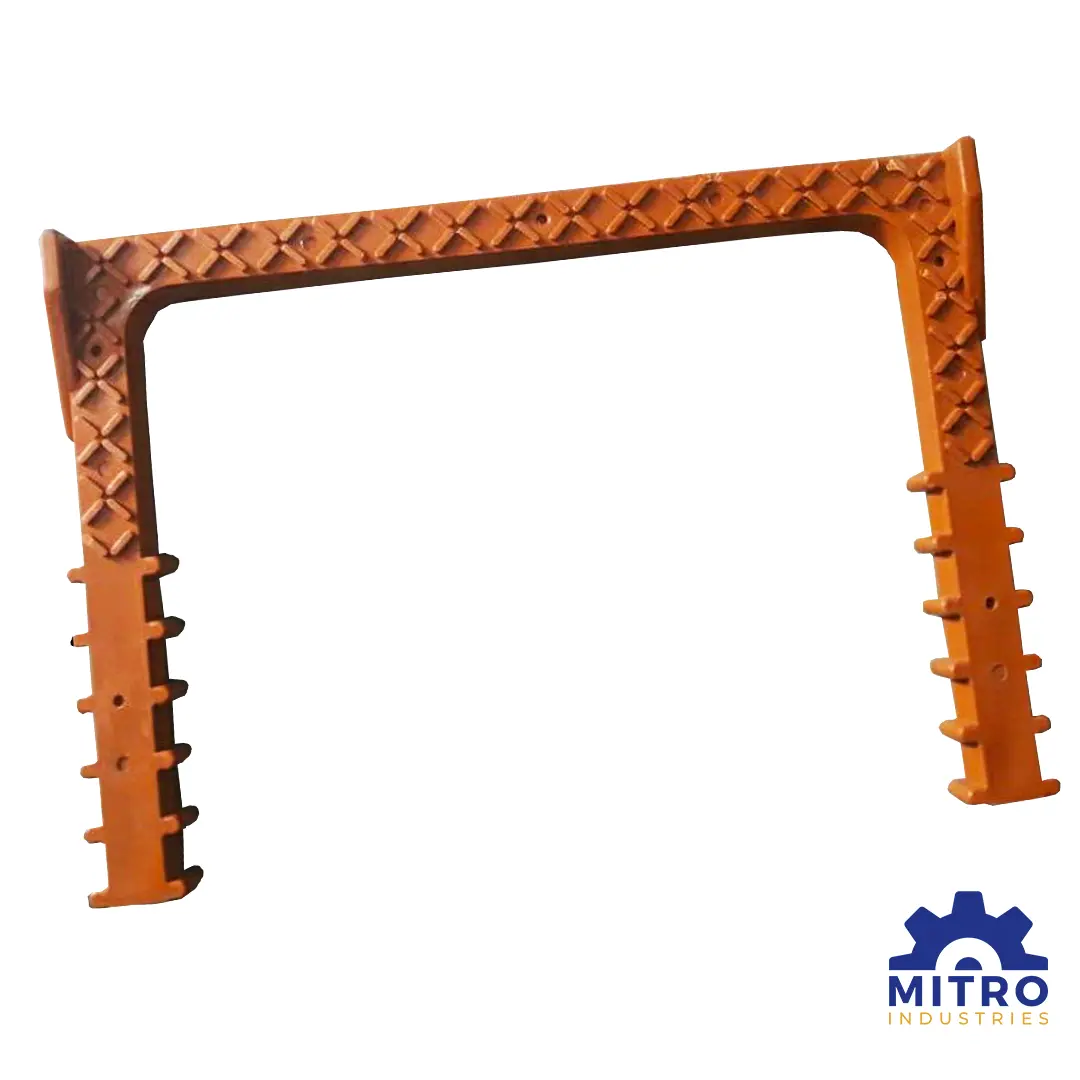

Manufacturer of PVC Footstep Rungs
Mitro Industries is one of the leading manufacturers and suppliers of PVC encapsulated rungs - Mitro PVC footsteps, specially designed for use in water wells, overhead water tanks, sewage manholes, and water and sewage plants. PVC is used in manufacturing rungs instead of steel and cast iron. View Complete Details...
Product Specification
We manufacture customized PVC encapsulated rungs with premium quality materials. And, to ensure workmen's safety, our PVC Rungs provide a firm grip while climbing the rungs.
Specification & Material used
• MS rod sizes of PVC Rungs are available in different sizes such as 8mm, 10mm & 12mm.
• PVC Encapsulated Rungs are manufactured as per IS standards.
• Available in Orange & Black colour.
• PVC Encapsulated Rungs are manufactured with PVC Material.
Properties
• High Density
• High Toughness
• High elongation at break
• Very good electrical and dielectric properties
• Very low water absorption
• Low steam permeability
• Good protection against stress cracking
• Soft surface
• Natural color is not weather-resistant
PVC FOOT STEPS - Technical Specifications & Sizes
| SR. No. | Length(mm) | Breadth(mm) | Thickness(mm) | Steel Reinforcement(mm) | Steel Standard | Color |
| 1 | 263 | 164 | 25*23 | 8 mm TMT Bar | As per IS 1786 | Black |
| 2 | 263 | 164 | 25*23 | 10 mm TMT Bar | As per IS 1786 | Black |
| 3 | 263 | 164 | 25*23 | 12 mm TMT Bar | As per IS 1786 | Black |
| 4 | 263 | 164 | 25*23 | 10 mm TMT Bar | As per IS 1786 | Orange |
| 5 | 263 | 164 | 25*23 | 12 mm TMT Bar | As per IS 1786 | Orange |
| 6 | 375 | 165 | 25*25 | 10 mm TMT Bar | As per IS 1786 | Black |

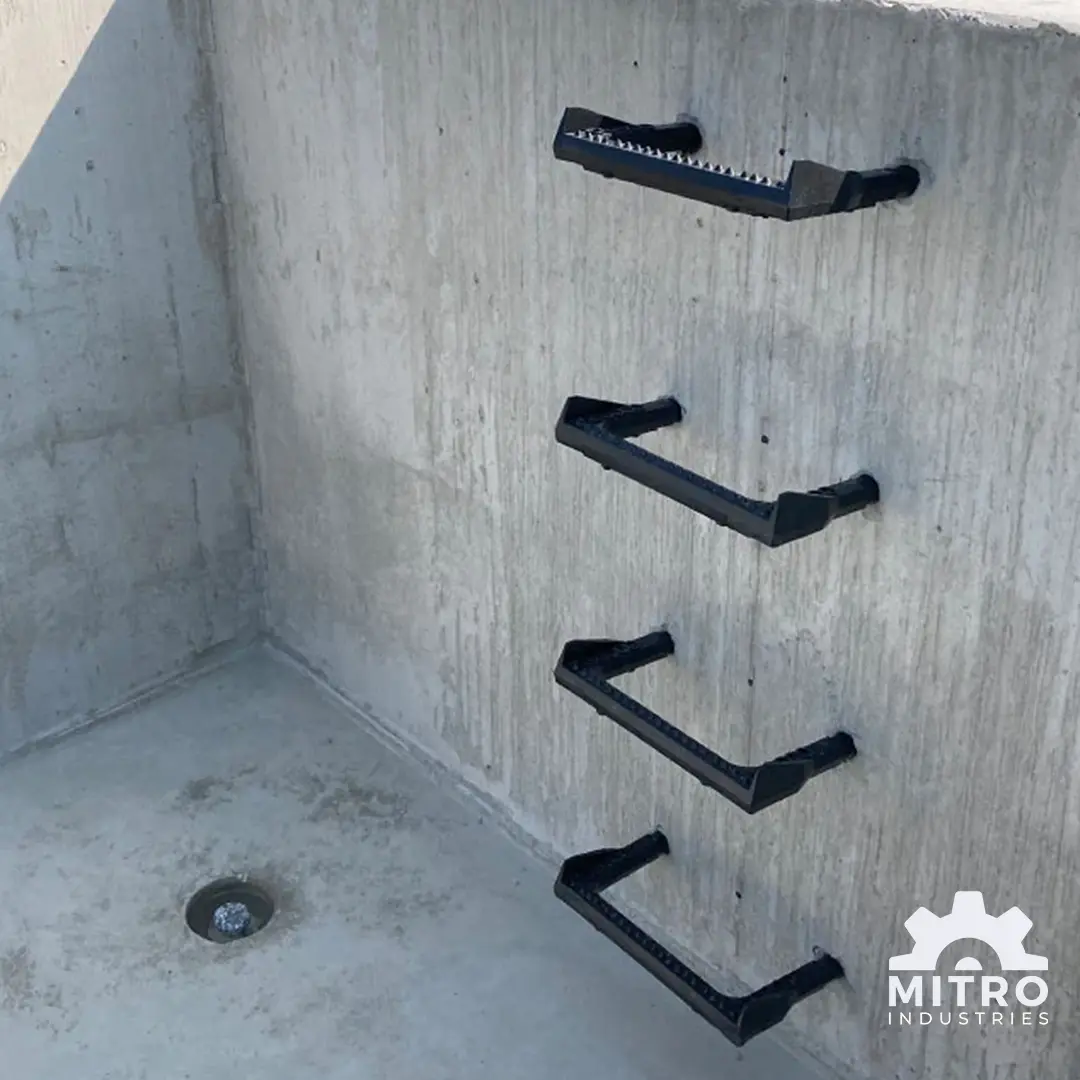

Installation of Footstep Rungs
