Aluminium Formwork Beam Bar

Product Specification

What is an Aluminium Formwork Beam Bar?

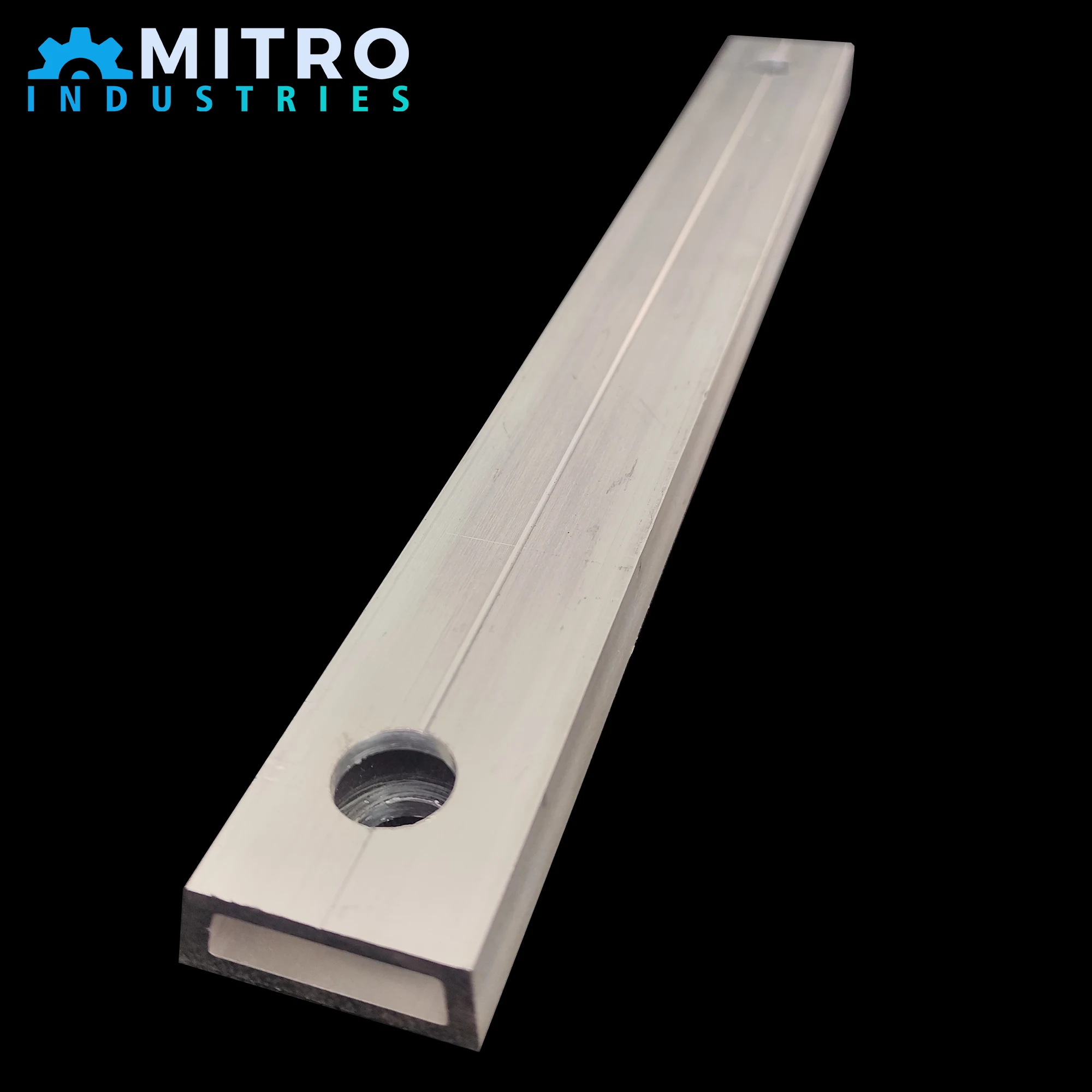

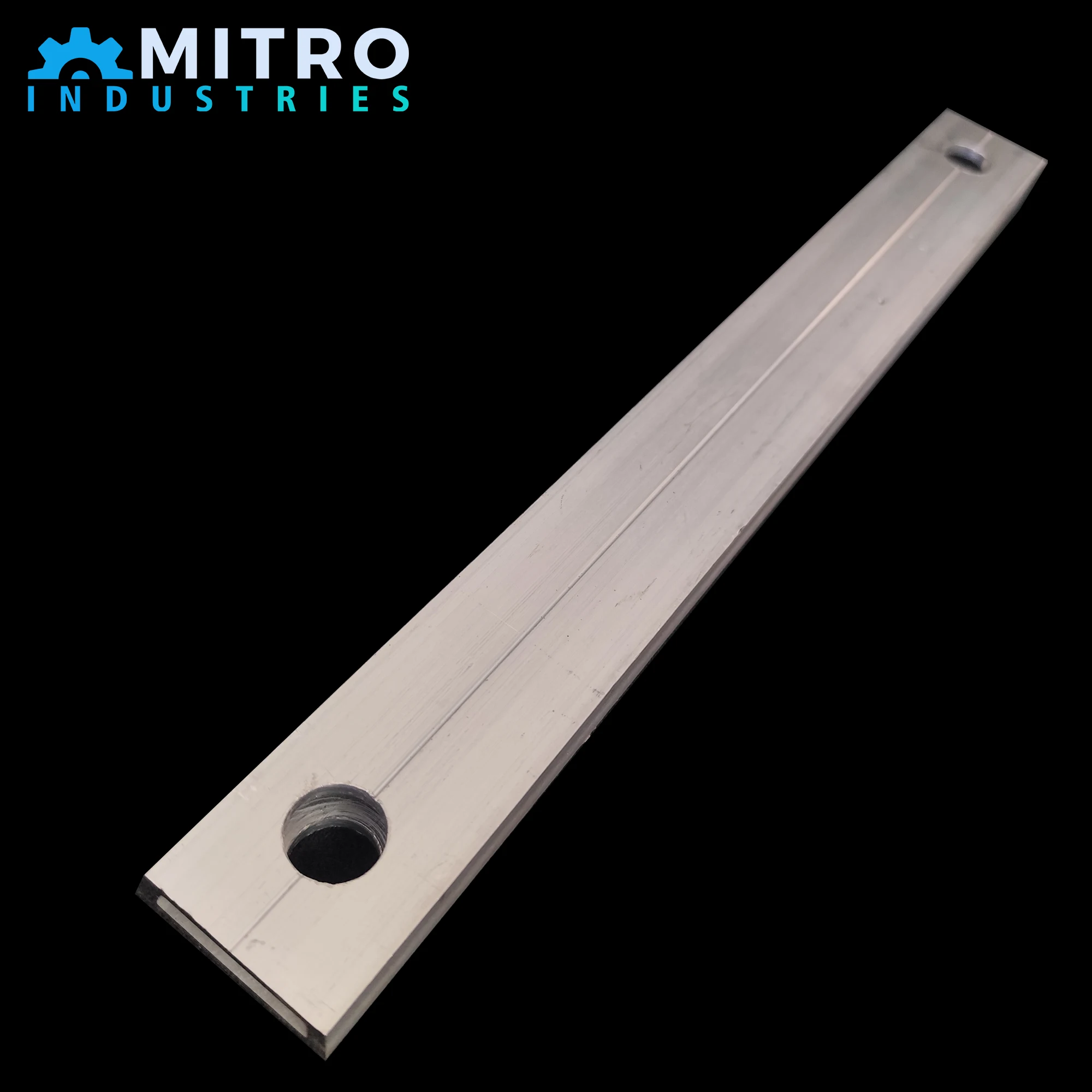

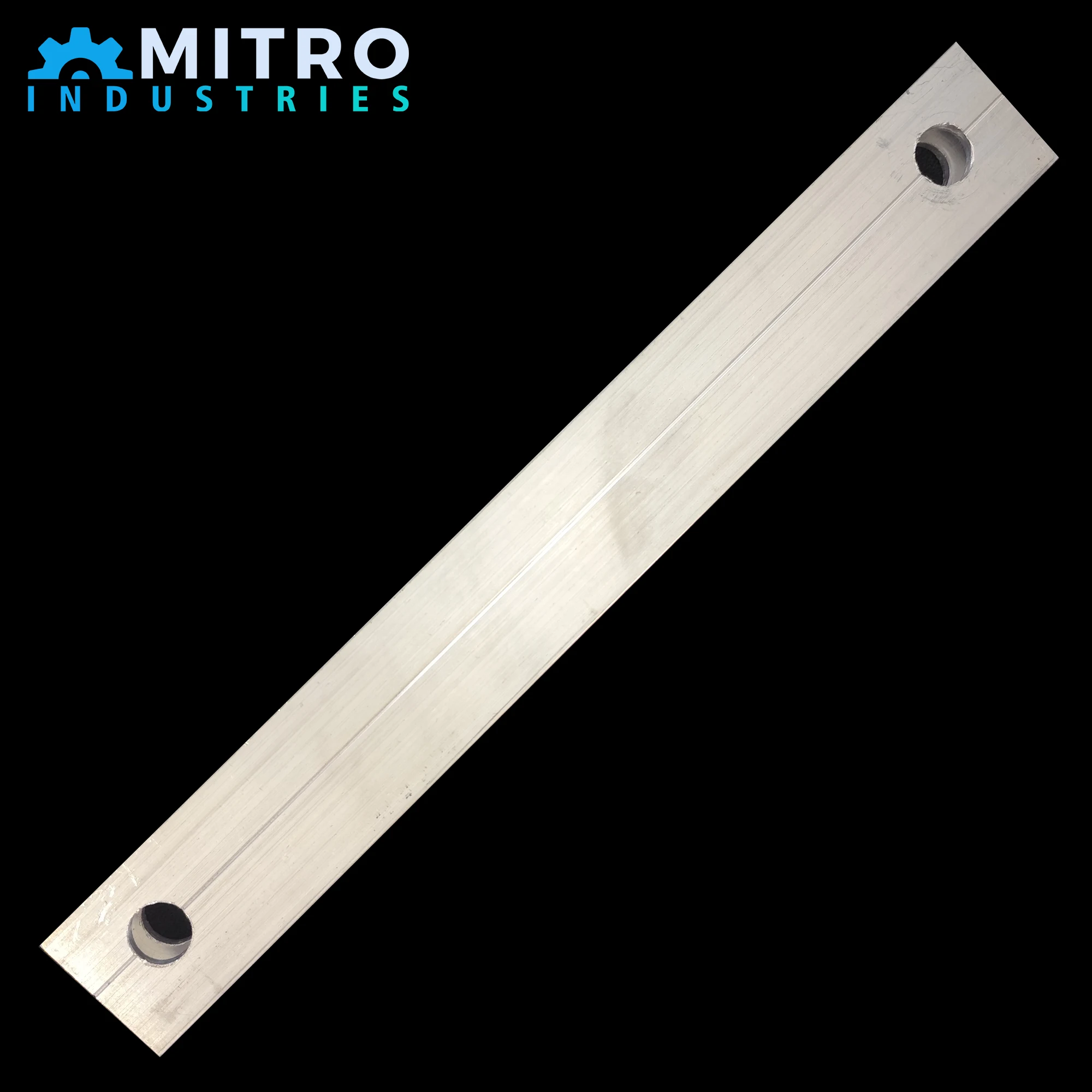

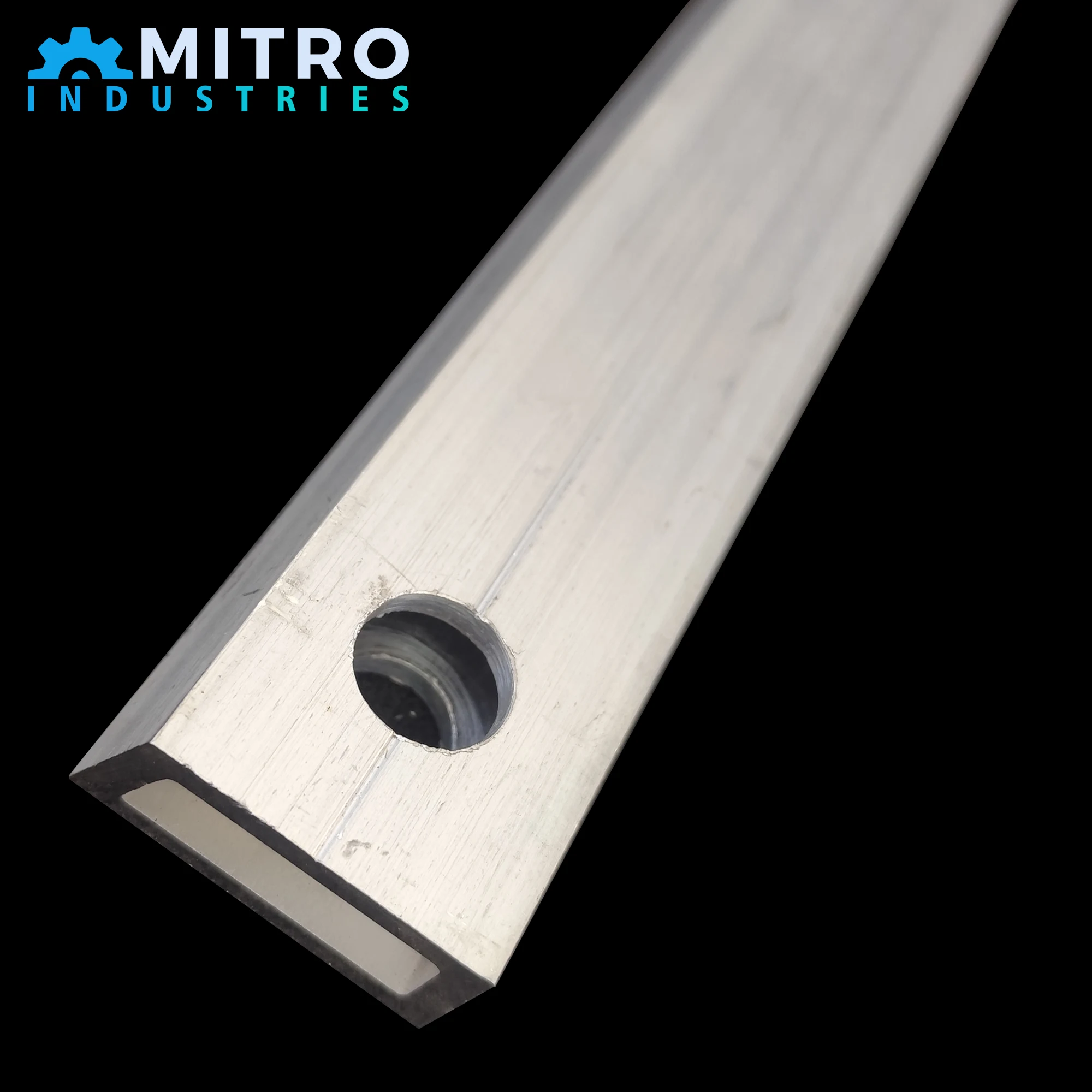

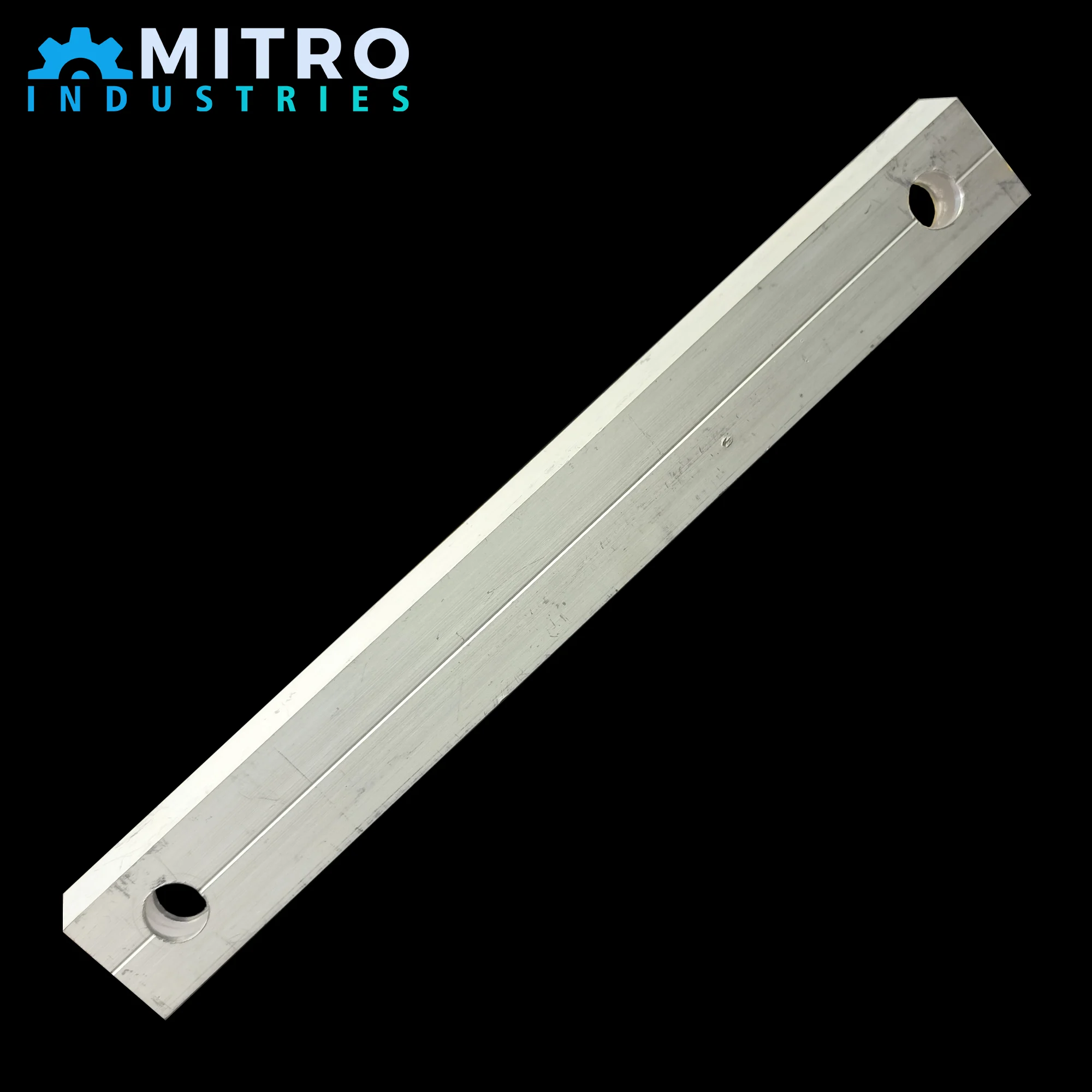

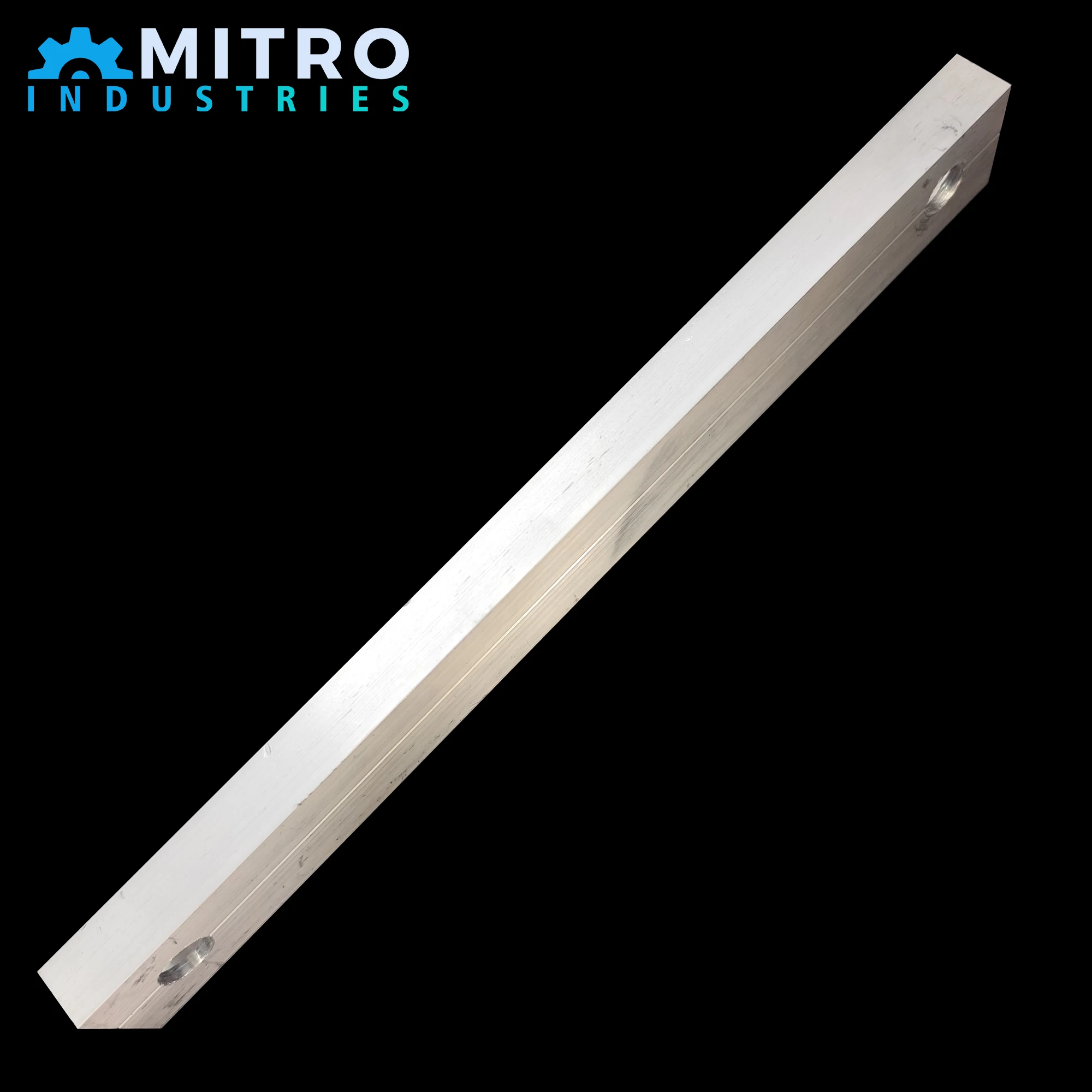

An Aluminium Formwork Beam Bar is a formwork accessory used in Mivan and aluminium formwork systems to connect, align, and support adjacent beam or slab panels during concrete casting. The adjustable beam bar provides controlled spacing between formwork panels and helps maintain accurate beam dimensions and alignment during concreting.

With an adjustable length of 350 mm to 420 mm, the beam bar can accommodate different beam-forming requirements while providing a secure connection between panels. It is designed for quick installation, adjustment, and removal, making it suitable for repetitive construction applications and high-rise projects.

The Aluminium Formwork Beam Bar helps reduce panel movement, shifting, and deformation caused by concrete pressure, contributing to consistent beam geometry and better formwork stability.

Aluminium Formwork Beam Bar Specifications

Key Features of Aluminium Formwork Beam Bar

• Adjustable Length : Adjustable from 350 mm to 420 mm to accommodate different beam-forming requirements.

• Heavy-Duty Steel Construction : Manufactured from robust steel for strength, durability, and repeated site use.

• Secure Panel Connection : Helps hold adjacent aluminium formwork panels together during concrete pouring.

• Accurate Beam Alignment : Maintains proper spacing and positioning of beam panels.

• Quick Installation : Designed for convenient fixing, adjustment, and removal at the construction site.

• Reusable Formwork Accessory : Suitable for repetitive construction cycles, helping improve formwork efficiency.

• Reduced Panel Movement : Helps minimize shifting, bulging, or misalignment caused by fresh concrete pressure.

• Protective Finish : Galvanized or protective coating options can be provided for improved resistance against corrosion.

• Suitable for Mivan Systems : Designed for use with aluminium formwork and Mivan-type construction systems.

Applications of Aluminium Formwork Beam Bar

The Aluminium Formwork Beam Bar is commonly used in

• Mivan Aluminium Formwork Systems – For connecting and aligning beam formwork panels.

• Aluminium Beam Formwork – Helps maintain beam width and panel positioning during casting.

• Beam and Slab Forming – Supports accurate spacing and alignment between formwork components.

• RCC Beam Construction – Helps stabilize formwork during concrete placement.

• High-Rise Construction – Suitable for projects requiring fast and repetitive formwork cycles.

• Residential Construction – Used in apartment buildings and mass housing projects.

• Commercial Construction – Suitable for reinforced concrete structural work.

• Reusable Formwork Systems – Designed for repeated installation and removal.

Why Use an Aluminium Formwork Beam Bar?

During concrete casting, fresh concrete creates lateral pressure on the formwork panels. If panels are not adequately connected and aligned, they can shift, bulge, or lose the required beam dimensions.

An Aluminium Formwork Beam Bar provides an effective connection and spacing solution between beam formwork panels. Its adjustable design allows contractors to accommodate different beam dimensions while maintaining consistent alignment.

For projects using repetitive aluminium formwork, a reusable beam bar can also help simplify installation and improve the efficiency of the formwork cycle.

Aluminium Formwork Beam Bar for Mivan Formwork

Mivan formwork, also known as aluminium formwork, is widely used for fast and repetitive RCC construction, particularly in residential and high-rise projects. Beam bars are among the accessories used to maintain the correct position and stability of beam-related formwork components.

The 350 mm to 420 mm adjustable Aluminium Formwork Beam Bar provides flexibility where different beam widths or panel arrangements are encountered. It can be installed, adjusted, and removed as part of the repetitive formwork cycle.

Advantages

Using an Aluminium Formwork Beam Bar can provide several practical advantages

1. Improved beam panel alignment

2. Controlled formwork spacing

3. Reduced panel movement during concrete pouring

4. Faster installation and removal

5. Reusable construction accessory

6. Suitable for repetitive Mivan formwork cycles

7. Better consistency in beam dimensions

8. Heavy-duty construction for demanding site conditions

How Does an Aluminium Formwork Beam Bar Work?

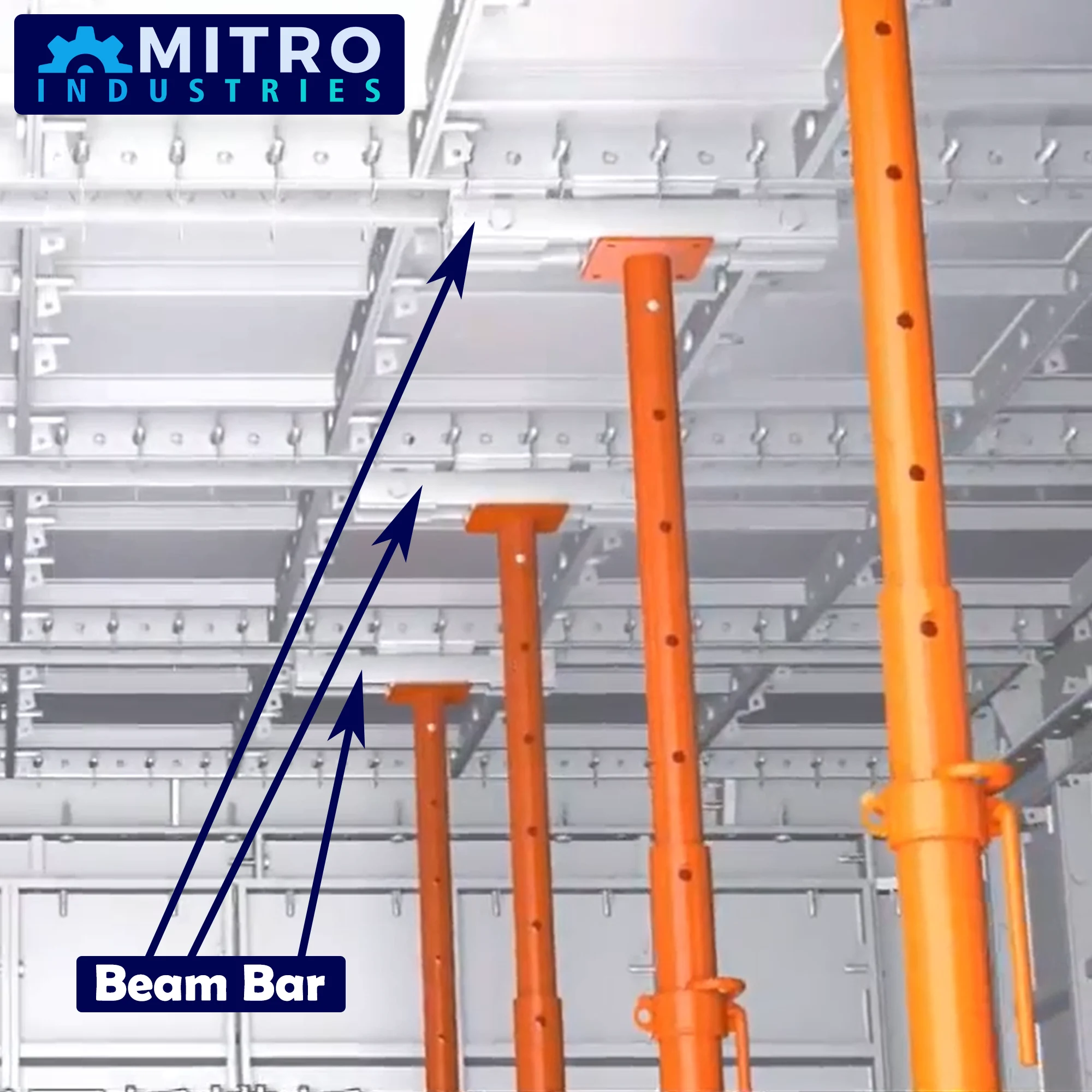

The beam bar is positioned between or across the relevant formwork components according to the beam-forming arrangement. Its adjustable mechanism allows the required length to be set between 350 mm and 420 mm.

Once adjusted and securely locked, it helps maintain the required spacing and alignment of the formwork panels. The panels can then be checked for correct positioning before concrete placement.

After the concrete reaches the required stage and the formwork is dismantled, the beam bar can be removed and reused in the next formwork cycle.
